Chess-Program

by Carson Kempf

Chess Program

Scope

• Create a program that makes random valid chess moves
• Implement chess using the chess AI Framework

Objectives

• Create a model of the game state and action generation

(to be used for future AI algorithms to solve)

Overview

• Generate all pseudo-valid moves for all of your player’s pieces in the current game state

• Pseudo-valid == valid moves disregarding checks

Joueur

Joueur Class

Output

On Each Turn

1. Print out in its own line: the number of moves available to your program
2. Print out in a single line: all moves available to your player program in alphabetical order
3. In the next line: print the randomly chosen move that the program returns to the chess server

• After, the program can print other stuff

Moves Printed

• In universal chess notation

Examples:

e2e4

e7e5

e1g1 (white short castling)

e7e8q (for promotion)

Sample Output

Input FEN string:

3k4/8/5N2/3P3p/4K3/2p5/1B6/8 w - - 0 23

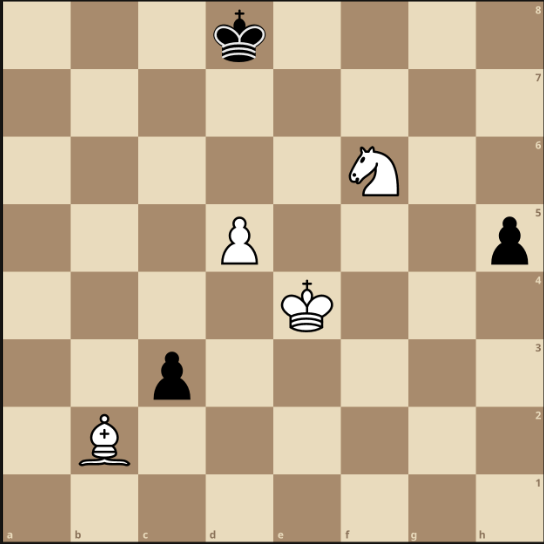

(Corresponds to the following board…)

Output Format:

18
b2a1 b2a3 b2c1 b2c3 d5d6 e4d3 e4d4 e4e3 e4e5 e4f3 e4f4 e4f5
f6d7 f6e8 f6g4 f6g8 f6h5 f6h7
My move = b2c1

**Note: Remember the special move rules for pawns and kings **

Implementation Requirements

• Only one language framework
• Delete the frameworks that aren’t used
• Place code in ai.py file

If other files are used:

• Place them in the same folder as ai.py
• Name the other files in the format Game1*.py
• Import the new file: import games.chess.foo

Documentation

Classes

• AI
• Game
• GameObject
• Player

Scope

• Should only edit file Joueur.py/games/chess/ai.py

• Should only edit functions make_move() and get_name()

AI

class games.chess.ai.AI(game)

• Add AI to play chess

Functions

end(won: bool, reason: str)

• Called when the game ends

returns:

• None

Parameters:

won(bool)

• True (won)

• False (lost)

reason(str)

• Human readable string

• Explains why the AI won or lost

game_updated()

• Called every time the game’s state updates

• For tracking (game states, trends?, ???)

returns:

• None

get_name()

• The name sent to the server

• The AI can control the player that is named this string

returns:

• string (The name of the player)

get_settings(key: str)

• Gets an AI setting passed to the program

• Through the “-aiSettings” flag

returns:

• string (Represents the value set via the command line (or none))

Flag:

Set

• Returned as a string value

Not Set

• None returned

Parameters:

key(str)

• The key of the setting

• We want to get the value of that specific key

make_move()

• Called every time the AI.player’s turn to make a single move

returns:

string

• In Universal Chess Interface

• Represents the move we want to make

• If the move is invalid or not properly formatted, we lose the game

start()

• Called once the game starts

• Our AI knows its player and game

• Initialize the AI

returns:

None

Properties

property game

• References the Game instance this AI is playing

Type:

games.chess.game.Game

property player

• References the Player this AI controls in the Game

Type:

games.chess.player.Player

Game

class games.chess.game.Game

• Represents the Game in the Chess game

• Traditional 8x8 chess board

Functions

get_game_object(id: str)

• Gets the game object with the given id (or returns none)

Returns:

Optional[joueur.base_game_object.BaseGameObject]

Properties

property fen

• Describes the entire state of the game board

Type:

string

property game_objects

• Maps every game object’s ID to the actual game object

• Used by the server and client

• Refers to the game objects via the ID

Type:

dict[str, games.chess.game_object.GameObject]

property history

• The list of known moves that have occurred in the game

• In Universal Chess Interface format

• The first element is the first move

• The last element is the most recent move

Type:

list[str]

property players

• List of all the players in the game

Type:

list[games.chess.player.Player]

property session

• A unique identifier for the game instance that’s being played

Type:

string

GameObject

class games.chess.game_object.GameObject

• Represents an object in chess

• The most basic class

• All classes inherit from automatically

Functions

log(message:str)

• Adds a message to the GameObject’s logs

• For debugging purposes

Returns:

None

Parameters:

message(str)

• String to add to the GameObject’s log (for debugging)

Properties

property game_object_name

• String representation of the top level Class that the GameObject is an instance of

• Used for reflection

• Creates new instances on clients

• Exposed for convenience (should AIs want this data)

Type:

string

property id

• A unique id for each instance of a GameObject or a sub class

• Used for client and server communication

• Never changes value after being set

Type:

string

property logs

• Any strings logged are stored here

• For debugging

Type:

list[str]

Player

class games.chess.player.Player

• Represents the player in the chess game

• Every AI controls one player

Functions

log(message: str)

• Adds a message to this GameObject’s logs

• Intended for debugging

Returns:

None

Parameters:

message(str)

Properties

property client_type

• What type of client the player is (Python in our case)

• For data mining purposes

Type:

string

property color

• The color of this player

• Either “white” or “black”

• Player “white” has the first move

Type:

“white”

“black”

property game_object_name

• String representing the top level Class that this GameObject is an instance of

• Used for reflection

• Helps create new instances on clients

• Exposed for convenience if AIs want this data

Type:

string

property id

• Unique id for each instance of a GameObject or sub class

• Used for client and server communication

• Never change value after being set

Type:

string

property logs

• Any strings logged are stored here

Type:

list[str]

property lost

• If the player lost the game or not

Type:

boolean

property name

• The name of the player

Type:

string

property opponent

• This player’s opponent in chess

Type:

games.chess.player.Player

property reason_lost

• The reason why the player lost the game

Type:

string

property reason_won

• The reason why the player won the game

Type:

string

property time_remaining

• The amount of time (in ns) remaining for this AI to send commands

Type:

float

property won

• If the player won the game or not

Type:

boolean

Game Logic

• Game logic is not implemented for you
• Cadre facilitates IO between a game server and the AI

Submission

ReadyToSubmit.txt

1. Change to yes
2. Change to py

Grading

• Tested with the play.sh script
• Plays the AI against itself

Do NOT edit play.sh

Execution

./play.sh LANGUAGE_DIR SESSION_ID

./testRun MyOwnGameSession

LANGUAGE_DIR

• The directory where we are coding in: Joueur.py

./play.sh Joueur.py testing_id

The testRun Script

• Set up to connect to the remote host mst-ai.xyz.

• If running locally change this to localhost (127.0.0.1)

Server Software

• Ignore the log files here

• Find logs under logs/gamelogs in the server directory (if running locally)
